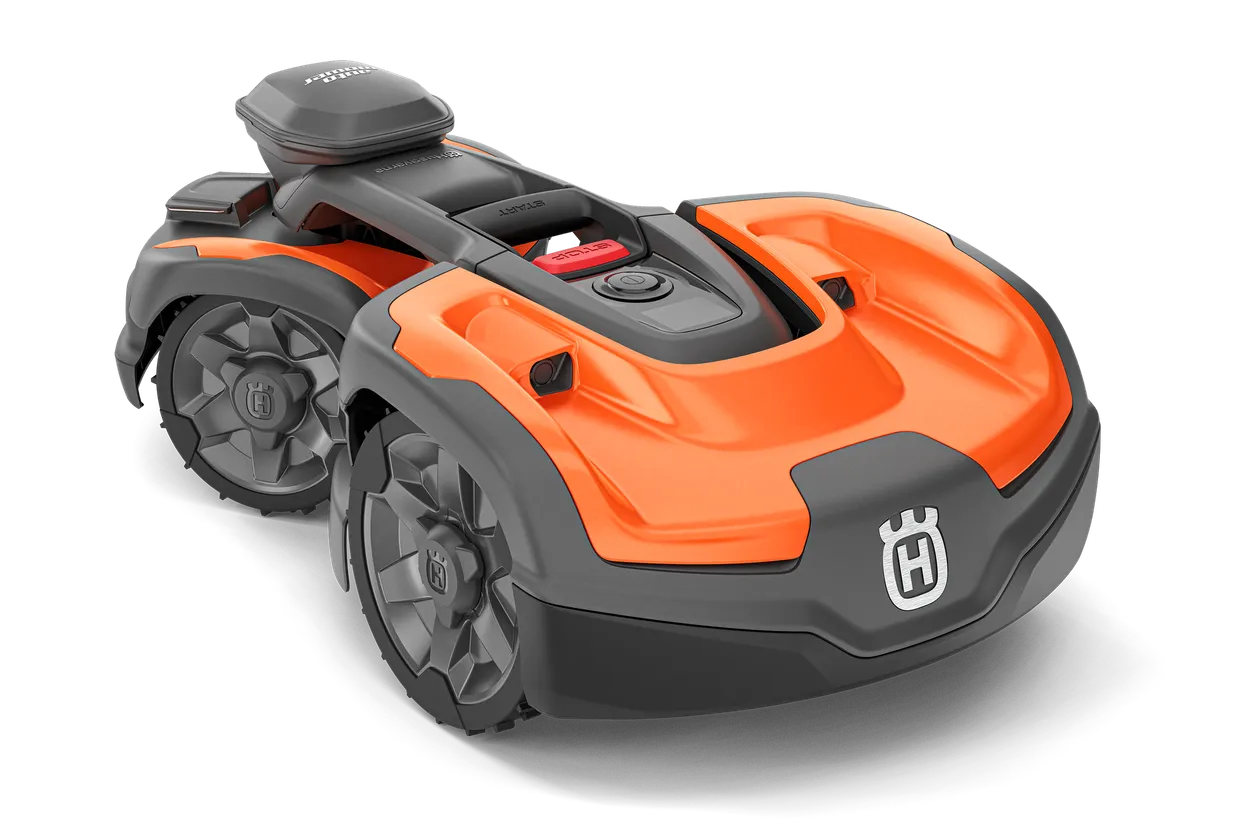

Husqvarna Automower® 535 AWD EPOS 5,000m² Robotic Lawn Mower

Original price was: £5,299.00.Current price is: £5,039.00. inc. VAT

A professional, all-wheel-drive robotic mower with wire-free EPOS technology. Engineered for the most demanding commercial lawns up to 6,000 m², it conquers steep slopes of up to 70% with ease.

This is a non-stock item but can still be ordered. Please contact us for lead times.
Description

Why buy the Husqvarna Automower 535 AWD EPOS 9″ Robotic Lawn Mower?

  • Wire-free installation with satellite-based Husqvarna EPOS™ technology for ultimate flexibility.
  • Exceptional all-wheel-drive (AWD) performance handles slopes up to a 70% incline.
  • Designed for commercial use on complex areas up to 6,000 m².
  • Full remote control and management via Husqvarna Fleet Services™.

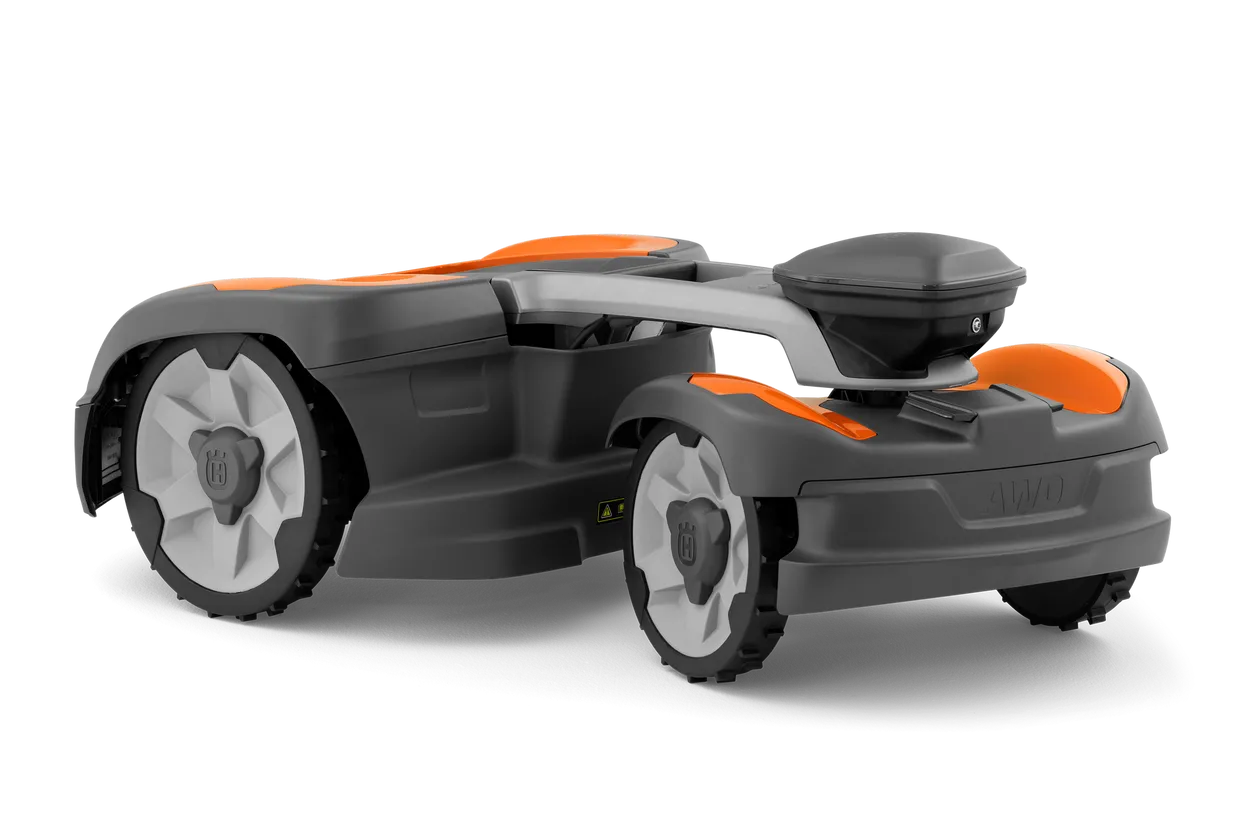

  • Pivoting rear body design for superior maneuverability and traction on rough terrain.
  • Remote object detection with ultrasonic sensors helps to avoid collisions.

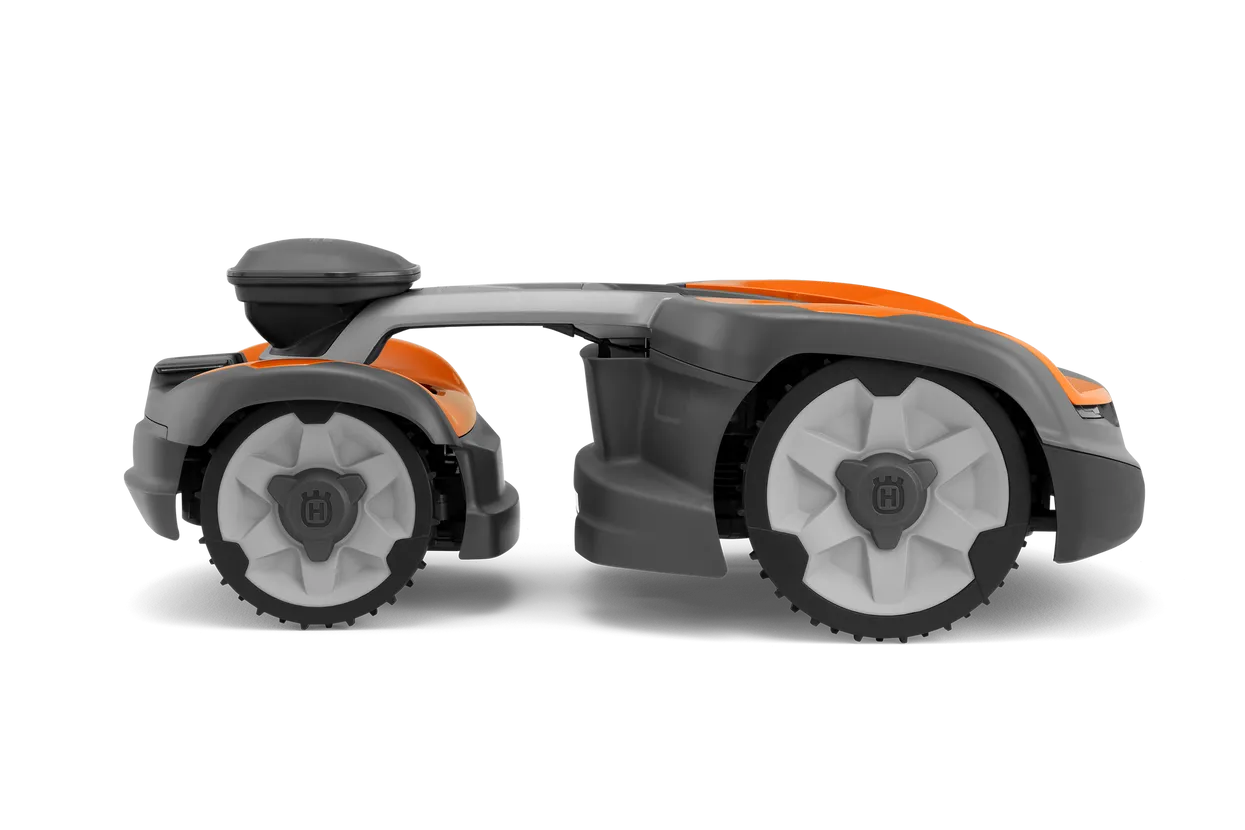

The Husqvarna Automower® 535 AWD EPOS™ is a highly effective robotic mower engineered for the unique challenges of commercial turf care. Its standout all-wheel-drive system and pivoting body provide unparalleled traction and control, allowing it to master tough terrain and steep slopes with an incline of up to 70% (35°). This makes it an ideal solution for corporate and municipal estates, sports grounds, and other large, complex green spaces that would be difficult or unsafe to mow with conventional machines.

Wire-Free Flexibility with Husqvarna EPOS™

At the core of its intelligence is the satellite-based Husqvarna EPOS™ (Exact Positioning Operating System) technology. This system facilitates a completely wire-free installation, using high-precision satellite signals for navigation with an accuracy of down to 2cm. This eliminates the time-consuming process of burying boundary wires and massively reduces the risk of downtime from wire breaks. Facility managers can easily create and customise multiple work areas, set different mowing schedules and cutting heights for each, and even establish temporary stay-out zones for events or maintenance, all through the management app.

Professional Fleet Management & Control

Designed for professional users, the 535 AWD EPOS™ integrates seamlessly with Husqvarna Fleet Services™. This powerful digital tool allows grounds managers to monitor, control, and analyse their entire fleet of machines from a smartphone, tablet, or laptop. The interface provides full control over the mower, including the ability to change settings, receive notifications, and track its location via GPS for theft protection. Features like appDrive allow for remote steering, useful for moving the mower between areas or to a designated maintenance point.

Advanced Mowing Technology

The Automower® 535 AWD EPOS™ is equipped with a range of smart features to deliver a perfect cut. The unique cutting system uses five sharp, pivoting razor blades on a robust cutting disc for efficient performance and low energy consumption, even in wet conditions. Electric height adjustment is controlled via the app, and AIM Technology uses onboard GPS and sensors to create a virtual map of the lawn for optimised mowing. To enhance safety and awareness, especially at night or in public areas, the mower features pulsating warning lights and ultrasonic sensors for remote object detection, helping it to avoid hard collisions.

As an authorised Husqvarna UK dealer, Sims Garden Machinery provides a level of service that goes far beyond simply shipping a box. This is a highly advanced piece of professional equipment, and for optimal performance, professional installation is strongly recommended. For local customers in the Warwickshire area, our trained sales staff can arrange a free on-site survey to assess your property’s suitability. This ensures the correct setup for your specific needs. Every Automower® purchased from us is backed by our century of experience and the support of our workshop, staffed by fully trained mechanics who handle servicing and maintenance, which can be found in our robotic servicing section. You can see and discuss Husqvarna Automower® models with our expert team at our Stratford-upon-Avon showroom.

Important Information

Please note that the Husqvarna EPOS™ RS5 Reference Station is required for the mower to function and is sold separately. The standard package includes the charging station, power supply unit, and a 10m low-voltage cable. Extra blades and wheel brushes are not included.

Not sure which machine or part is right for you?
Our team is here to help. Contact us today for expert advice.

Technical Specification

Specification Value
Working area capacity (±20) 6,000 m²
Boundary type Physical wire, Virtual wire
Maximum slope performance at boundary 50 %
Maximum slope performance inside installation 70 %
Max active time 24 h
Follow guide Virtual transport path
Charging system Automatic
Weight 18.1 kg
Product size (LxWxH) 93 cm x 55 cm x 33 cm
Sound level perceived 60 dB(A)
Protection Index (IP Code) IPX4
Battery Chemistry Lithium Ion
Battery capacity 8 Ah
Charging current 7 A
Typical mow time on one charge 145 min
Typical charging time 45 min
Mean energy consumption per month at maximum use 25 kWh
Cutting system 5 pivoting razor blades
Cutting height max 70 mm
Cutting height min 30 mm
Cutting width 22 cm
Cutting height adjustment Electric
User Interface Professional User Interface/App
Connectivity Bluetooth®, Cellular
App controlled Husqvarna Fleet Services
Firmware Update FOTA
GPS Theft tracking Yes
GeoFence Yes
PIN code Yes
Alarm Yes
Lift sensor Yes
Tilt sensor Yes
Object detection Ultrasonic

Why buy from Sims Garden Machinery?

Authorised Dealer

Authorised main dealer

We are authorised dealers for leading brands, meaning genuine parts, manufacturer-approved training, and warranty support you can rely on.

Real People

Real people, real support

No call centres. No ticket systems. Just a knowledgeable local team you can speak to when you need help.

Expert Advice

Expert advice — not pushy sales

Our team are trained mechanics and product specialists, so you get honest, practical advice based on how you’ll actually use the machine.

Since 1908

Established, independent family business

We’re a long-standing independent dealer with deep roots in the local area — built on reputation, repeat customers, and word of mouth.

Frequently Asked Questions

Who is the Husqvarna Automower® 535 AWD EPOS™ best suited for?

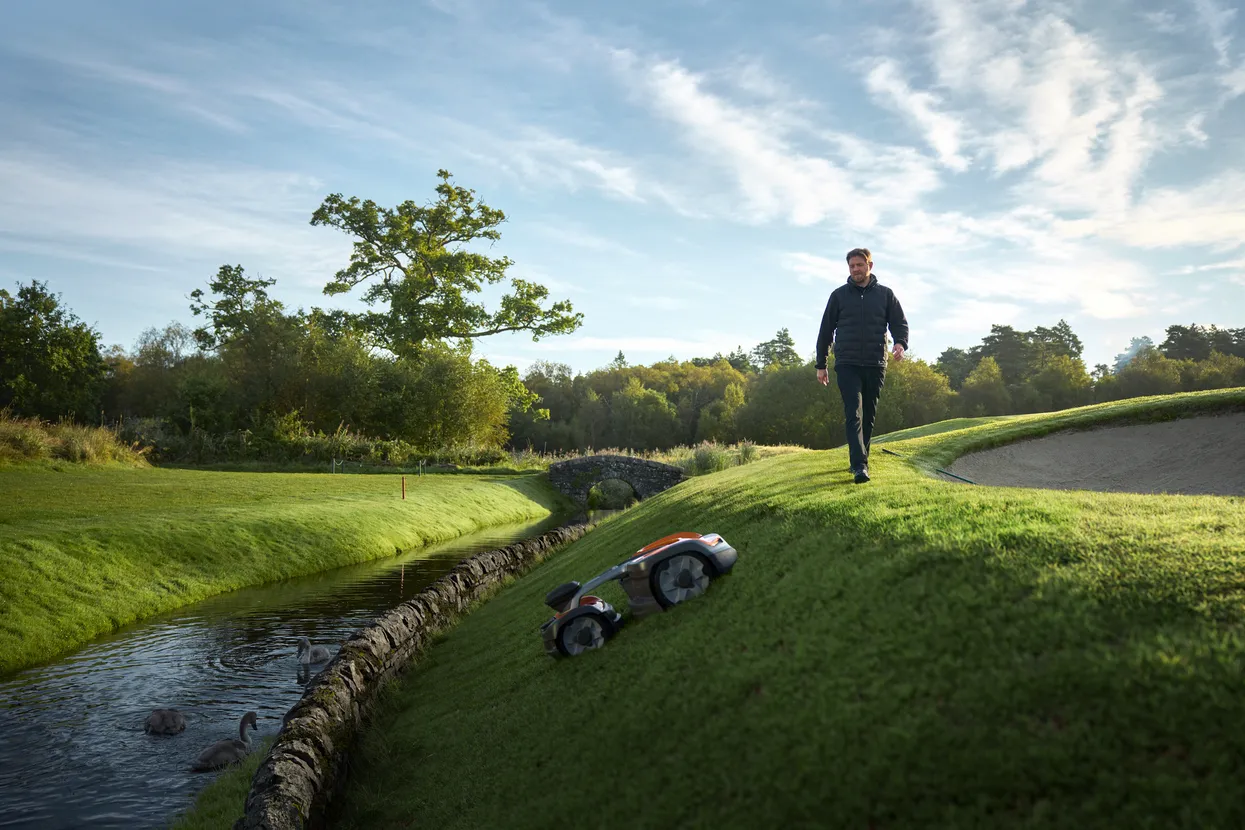

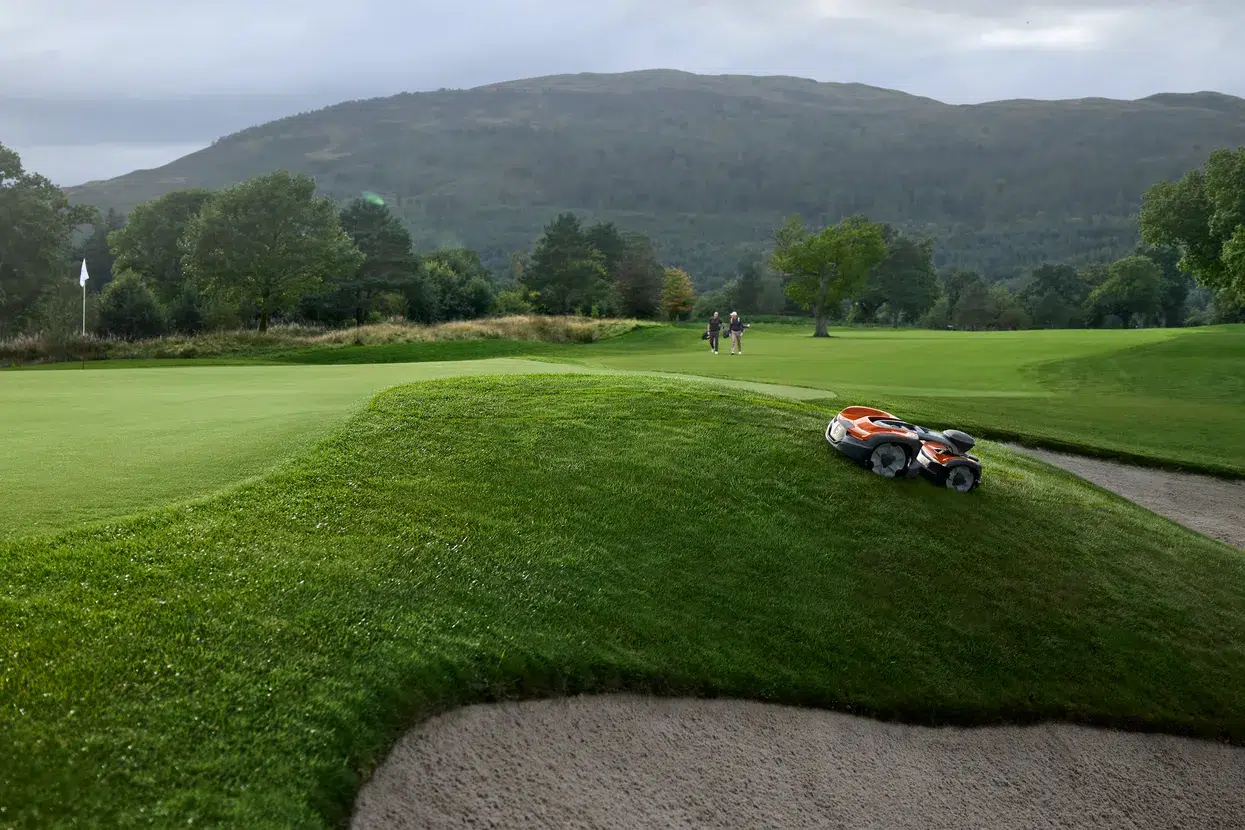

This robotic mower is specifically designed for professional and commercial users managing large, complex, and challenging green spaces. It’s ideal for corporate campuses, municipal parks, sports facilities, and large private estates, particularly those with steep slopes, rough terrain, and multiple distinct mowing areas up to 6,000 m².

What is Husqvarna EPOS™ technology?

Husqvarna EPOS™ (Exact Positioning Operating System) is a satellite-based technology that allows the robotic mower to operate without physical boundary wires. It uses RTK-GNSS signals to create precise virtual boundaries with an accuracy of 2-3 cm, offering incredible installation flexibility, robustness, and the ability to easily manage complex work areas remotely.

Do I need to buy anything else for the Automower® 535 AWD EPOS™ to work?

Yes. To function, the mower requires a Husqvarna EPOS™ RS5 Reference Station, which is sold separately. The reference station provides the high-precision satellite correction data that the mower needs to navigate accurately within its virtual boundaries.

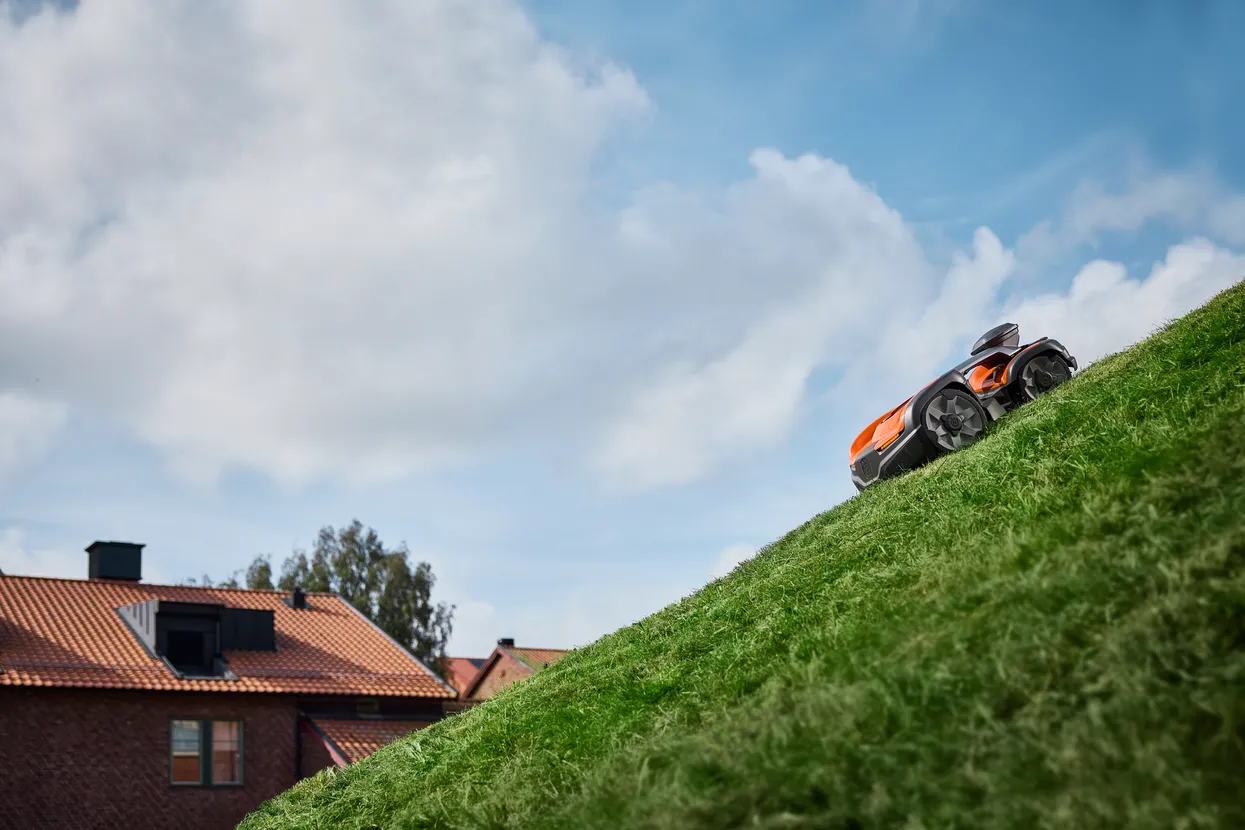

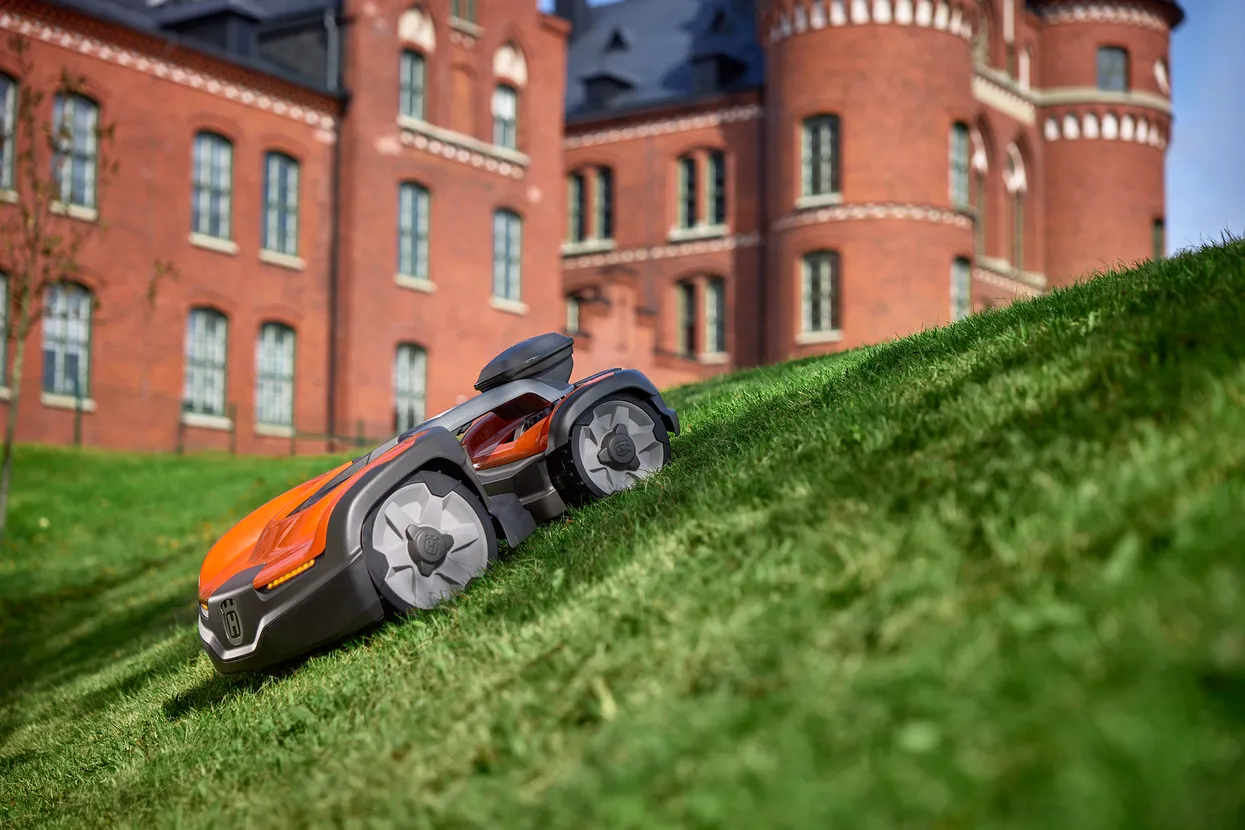

How does this mower handle very steep banks?

The 535 AWD EPOS™ is exceptionally capable on steep terrain thanks to its all-wheel-drive (AWD) system and articulated body. It can reliably manage slopes with an incline of up to 70% (35°), providing excellent traction and stability where many other robotic or conventional mowers would fail.

How is the mower controlled and managed?

The mower is managed professionally through the Husqvarna Fleet Services™ application, available on smartphone, tablet, or laptop. This platform gives fleet managers full control to monitor the mower’s status, adjust schedules and cutting heights, track its location via GPS, and receive notifications, making it easy to manage one or multiple units across different sites.

User Manuals / Downloads


View Husqvarna Brochure

Additional information
Brand
Boundary TypeThe navigation method used (e.g., Wired perimeter or Wireless GPS).Wireless
ConnectivitySmart connection features available (e.g., Bluetooth, Wi-Fi, GPS).[“Bluetooth”,”4G”,”GPS”]
Cut Height RangeThe range of adjustable cutting heights (min-max).30-70mm
Lawn ComplexityThe level of lawn layout complexity suitable for this model.Complex
Max InclineThe maximum slope gradient the machine can handle (%).70
