Why buy the Ariens ARROW E 52R 52″ Stand-On Zero-Turn Mower (Kit)?
- Powered by four interchangeable 56V 4kWh FusionCore™ lithium-ion batteries
- Robust 132 cm (52″) fabricated rear discharge deck made from 4.6mm steel
- QuickSwap™ battery system enables continuous, all-day cutting
- Folding, suspended operator platform for versatility and transport
- Brushless spindle motors with innovative slipping clutch to protect against impacts
- ECO mode to conserve energy and extend battery life during lighter work
Professional Performance with Zero Emissions

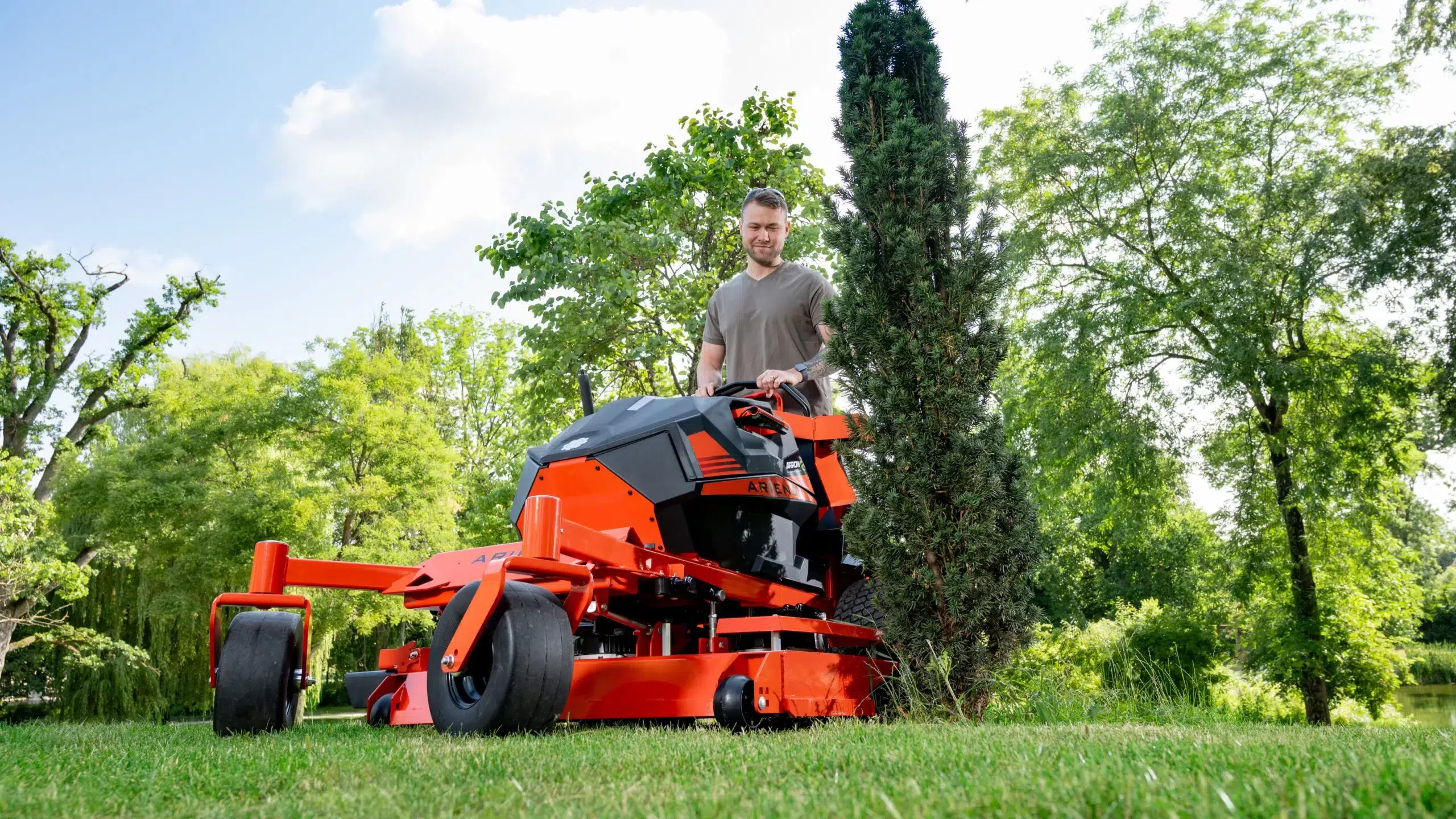

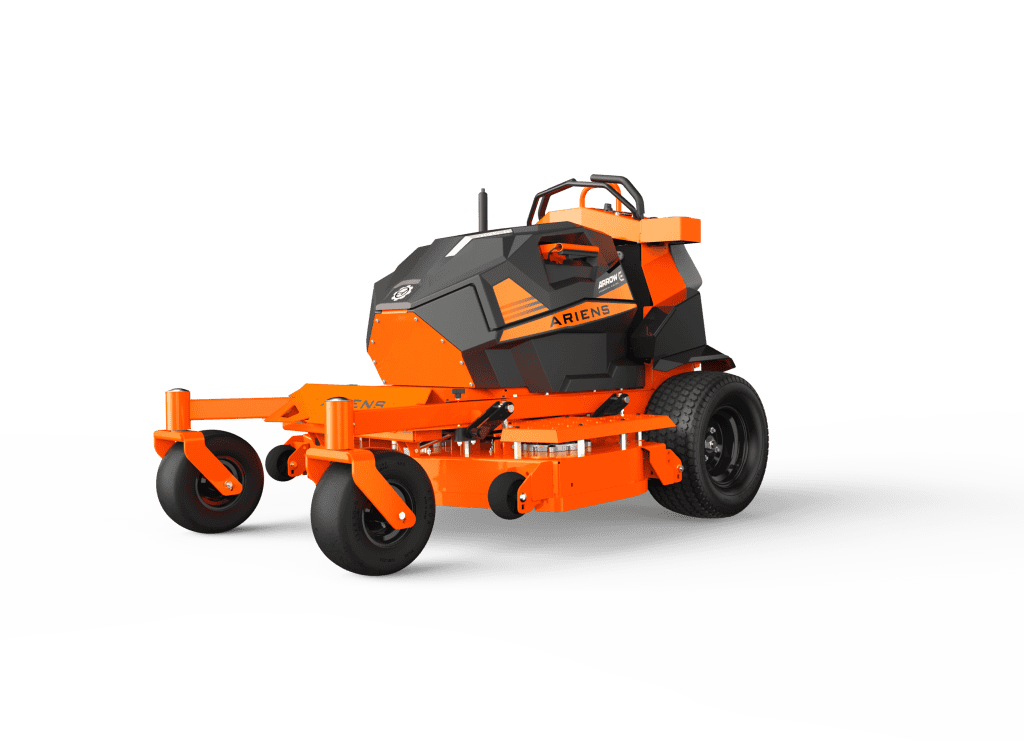

The Ariens ARROW E 52R is a fully commercial, battery-powered stand-on zero-turn mower designed for professional groundskeepers, landscapers, and municipalities. Its stand-on configuration offers exceptional comfort, agility, and a compact footprint, making it ideal for navigating complex spaces while reducing operator fatigue. The upright working position provides a superior overview of the mowing area and is beneficial for users with back problems.
Advanced FusionCore™ Battery Technology
At the heart of the ARROW E 52R is the Ariens FUSIONCORE™ power system, featuring four interchangeable 56V, 4kWh lithium-ion batteries. This system delivers a total capacity of 16kWh, using premium Panasonic Li-NMC cells for reliable, long-lasting power. The innovative QuickSwap system allows operators to change batteries easily, enabling all-day cutting with additional battery sets. The machine can operate at full power with just two batteries and can even be transported with a single battery. Charging is flexible, with a standard charge taking 11 hours and a fast charge option reducing this to just 5.3 hours.
Robust Deck and Drivetrain
This mower is equipped with a formidable 132 cm (52″) rear discharge cutting deck, fabricated from heavy-duty 4.6mm welded steel. The rear discharge design is perfect for working near paths or flowerbeds, as it prevents clippings from being thrown sideways. The deck height is easily adjusted via a combined foot pedal and hand lever system, offering 15 distinct cutting positions from 3.8 cm to 12.7 cm. The three blades are driven by high-performance brushless spindle motors, which feature a patent-pending slip clutch. This intelligent design protects the motors from damage by allowing the blade to ‘slip’ upon impact with a foreign object.
Designed for the Operator
Every feature of the ARROW E 52R is designed with the user in mind. The suspended driver’s platform is foldable, allowing the machine to be used as a walk-behind mower for tackling slopes up to 20° or for working under low-hanging branches. Intuitive controls place all functions within easy reach, including an ECO mode switch to reduce blade speed and conserve energy in lighter conditions. The colour LED display provides real-time information on battery status, operating modes, hours, and system diagnostics, eliminating the need for external diagnostic tools. The machine also includes an electric parking brake and two driving speed levels for complete control.
Applications and Suitability
The Ariens ARROW E 52R is built for demanding commercial use. It excels in maintaining large areas, including flat, undulating, and hilly terrain. Its zero-emission operation makes it the perfect choice for service providers and municipal teams working in environments where noise and air pollution are restricted, such as parks, schools, and residential estates.
Available Accessories
To maximise productivity, a range of accessories are available. Extend cutting time with an additional 56V battery kit. For convenient charging, an off-board charger kit allows you to charge up to four batteries outside the machine. To significantly reduce downtime, the fast charger w/y harness kit can recharge the four batteries in the machine in just 5.3 hours.
As an authorised UK dealer for Ariens, Sims Garden Machinery has been a trusted name in the industry for over 100 years. When you purchase an Ariens ARROW E 52R from us, you are buying from a specialist, not a box-shifter. Our trained sales staff are on hand at our Stratford-upon-Avon showroom to provide expert advice, and our workshop is staffed by factory-trained mechanics for ongoing support and servicing. For local customers, this machine includes a comprehensive free Pre-Delivery Inspection (PDI), local delivery, and a full handover demonstration to ensure you are confident and ready to work from the moment it arrives.
Our team is here to help. Contact us today for expert advice.
Technical Specification
| Model Number | 998305 |
| Drive System | Ariens FUSIONCORE™ brushless electric wheel motors, 2 x 5 kW max. |
| Max. Speed Forward / Backward | 17.7 km/h / 8.9 km/h (11 mph / 5.5 mph) |
| Deck Type | Rear Discharge |
| Deck Material | 4.6 mm sheet steel |
| Deck Construction | Welded |
| Deck Lift System | Foot pedal and hand lever |
| Number of blades | 3 |
| Spindle Material | Forged Aluminium |
| Spindles drive | Ariens FUSIONCORE™ direct electric drive brushless, 3x 3.5 kW max. |
| Cutting Width | 132 cm (52″) |
| Cutting Heights | 3.8 cm – 12.7 cm (1.5″ – 5.0″) |
| Cutting Positions | 15 |
| Front Wheels | 13 x 6.5-6 semi-pneumatic |
| Rear Wheels | 20 x 10-10 |
| Driver Platform | Suspended, foldable |
| Interface | LED Display with Hour Counter & 2 USB Charging Sockets |
| Weight | 561 kg |
| Dimensions (L x W x H) | 190 cm x 137 cm x 117 cm |
| Battery Type | 4 x 56V Ariens FUSIONCORE™ Li-Ion swappable |
| Battery Capacity | 4 x 4 kWh (16 kWh total) |
| Charge Time | Fast charging: 5.3 hrs; Standard charging: 11 hrs |
| Limited Machine Warranty | 5 years / 1,500 hours (no hour limit in first 2 years) |
| Battery Warranty | 3 years |
Why buy from Sims Garden Machinery?
Authorised main dealer
We are authorised dealers for leading brands, meaning genuine parts, manufacturer-approved training, and warranty support you can rely on.
Real people, real support
No call centres. No ticket systems. Just a knowledgeable local team you can speak to when you need help.
Expert advice — not pushy sales
Our team are trained mechanics and product specialists, so you get honest, practical advice based on how you’ll actually use the machine.
Established, independent family business
We’re a long-standing independent dealer with deep roots in the local area — built on reputation, repeat customers, and word of mouth.
Frequently Asked Questions
Who is the Ariens ARROW E 52R best suited for?
The ARROW E 52R is a fully commercial machine designed for professional users such as landscaping contractors, grounds maintenance teams, and municipal operators. Its zero-emissions performance makes it particularly suitable for work in noise-sensitive areas like schools, hospitals, parks, and residential estates.
What is the main advantage of a stand-on mower?
Stand-on mowers like the ARROW E offer several advantages. They provide excellent visibility over the cutting deck and surrounding area, are highly manoeuvrable in tight spaces, and have a more compact footprint for transport and storage than traditional sit-on mowers. The upright, ergonomic stance can also reduce operator fatigue and strain compared to sitting for long periods.
Can this mower run all day on a single charge?
While the runtime on the included four batteries depends on cutting conditions, the ARROW E 52R is designed for all-day operation through its QuickSwap battery system. By having a second set of four batteries charging separately (using an optional off-board charger), you can quickly exchange depleted batteries for fresh ones and continue working with minimal downtime.
How does the spindle slip clutch protect the mower?
The brushless spindle motors are equipped with a slip clutch. If a blade hits a hard object like a rock or tree root, the clutch allows the blade to ‘slip’, absorbing the impact and preventing the sudden stop from damaging the spindle shaft or the electric motor itself. This is a crucial feature for protecting the machine in demanding commercial environments.
